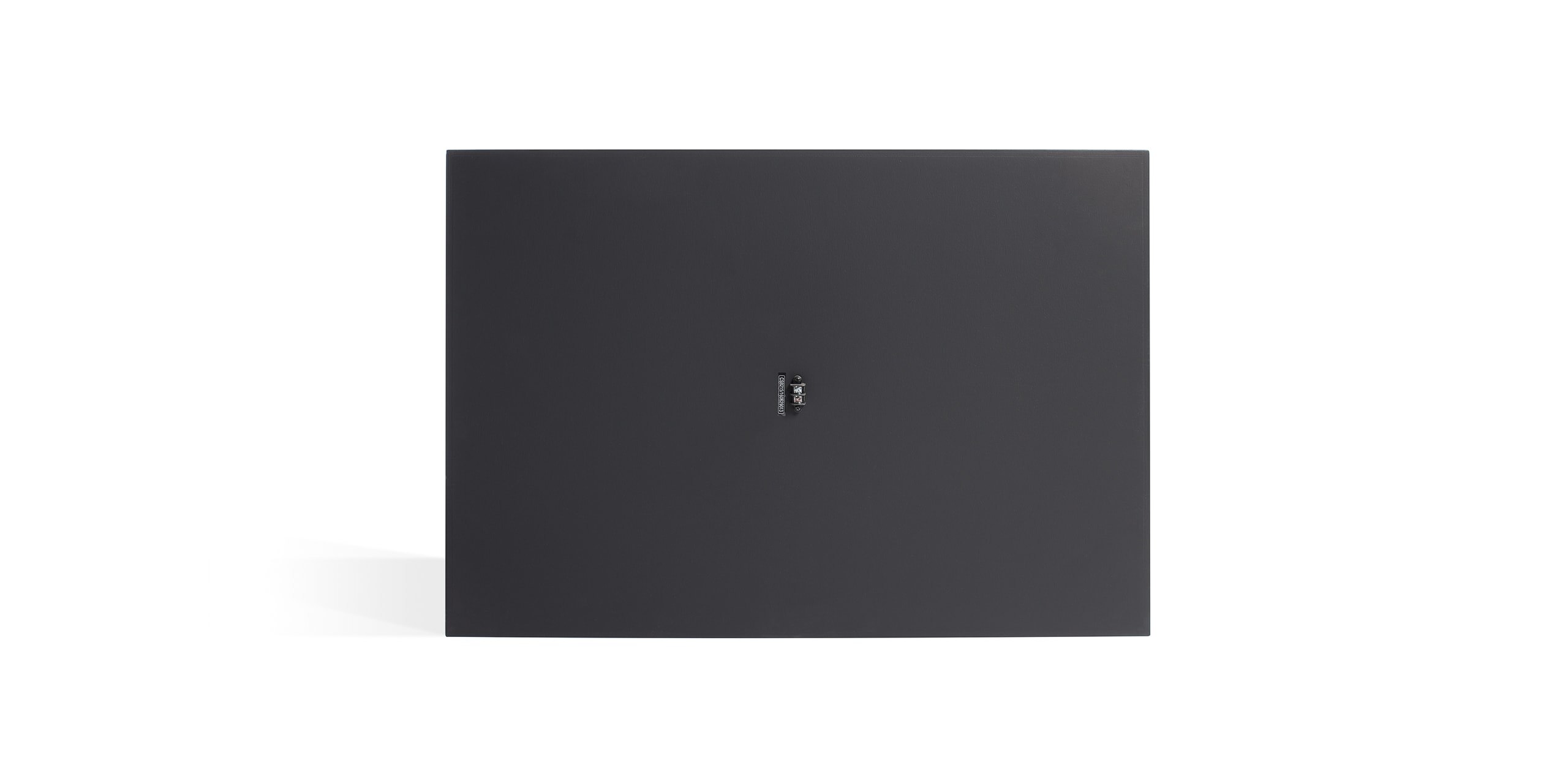

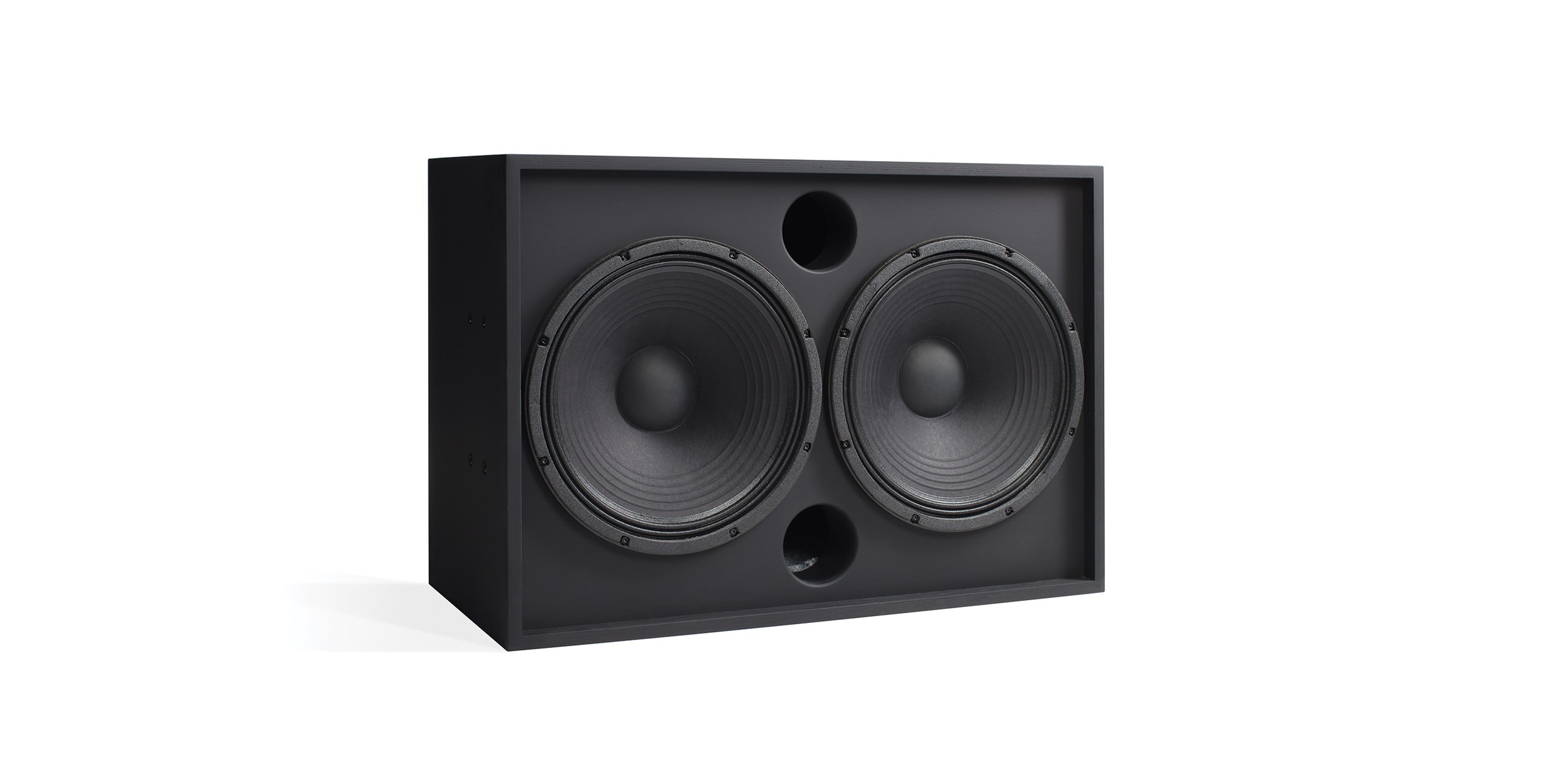

SLS CSB215 Cinema Screen Channel Low Frequency Module

SLS CSB215 Cinema Screen Channel Low Frequency Module

DISCONTINUED

    The CSB215 is a mid/bass cinema speaker. Its primary application is for use as a companion to the CS200MH/CS301MH mid/high enclosures in medium- to large-sized theaters.

    The 15” long excursion, bass loudspeakers have been specifically designed to deliver high impact bass response.

    Features

    • Powerful magnet assembly

    • Open and clear sound at high SPL due to advanced transducer technology

    • 13-ply 3/4” Baltic birch cabinet construction

    • Barrier strip input connection

    Find a dealer

    Global dealers

    Specifications

    • Operating range

      40 Hz to 800 Hz

    • Sensitivity (1W@1M)

      98 dB

    • Power handling

      900W (60V) AES/2

    • Max SPL (calculated) 1M

      128 dB continuous/134 dB peak

    More...

    Documents

    Applications

    • Developed for high-performance cinema applications where the highest quality and intelligibility of sound is required
    • Behind screen LCR
