Dolby Atmos Renderer

Dolby Atmos Renderer

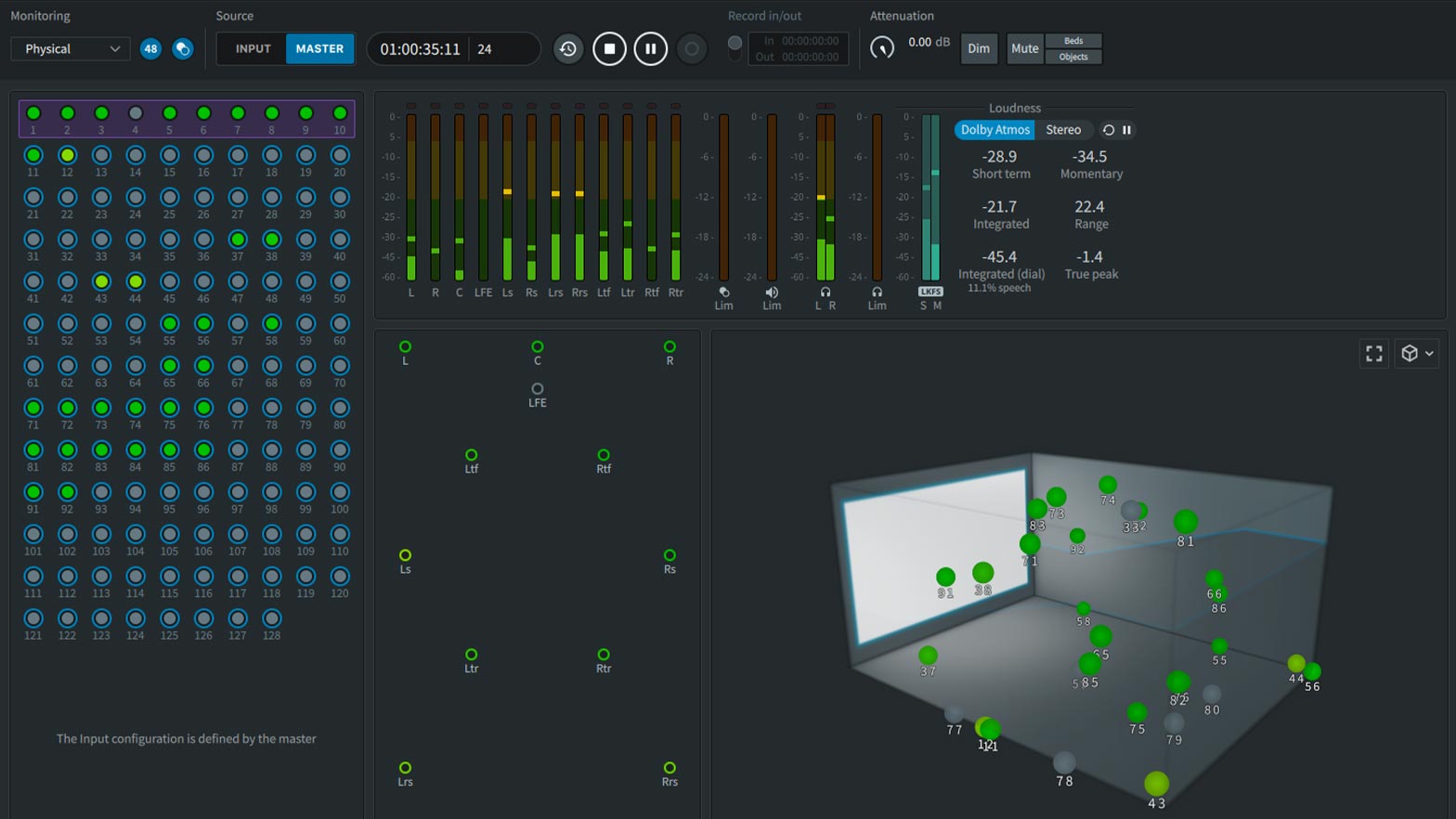

The Dolby Atmos Renderer is the central element of any Dolby Atmos mixing system. In tandem with your favorite DAW, it generates the positional metadata that allows for the accurate spatial reproduction of an audio mix in any playback environment.
It renders up to 128 inputs (including audio beds and objects with metadata) to your monitoring configuration, as well as rendering to standard channel-based layouts for both monitoring and deliverable creation. It also creates the Dolby Atmos master file, used for encoding for final distribution to streaming services or Blu-ray.
The Dolby Atmos Renderer is available in the Dolby Atmos Production Suite and the Dolby Atmos Mastering Suite.


Dolby Atmos Production Suite

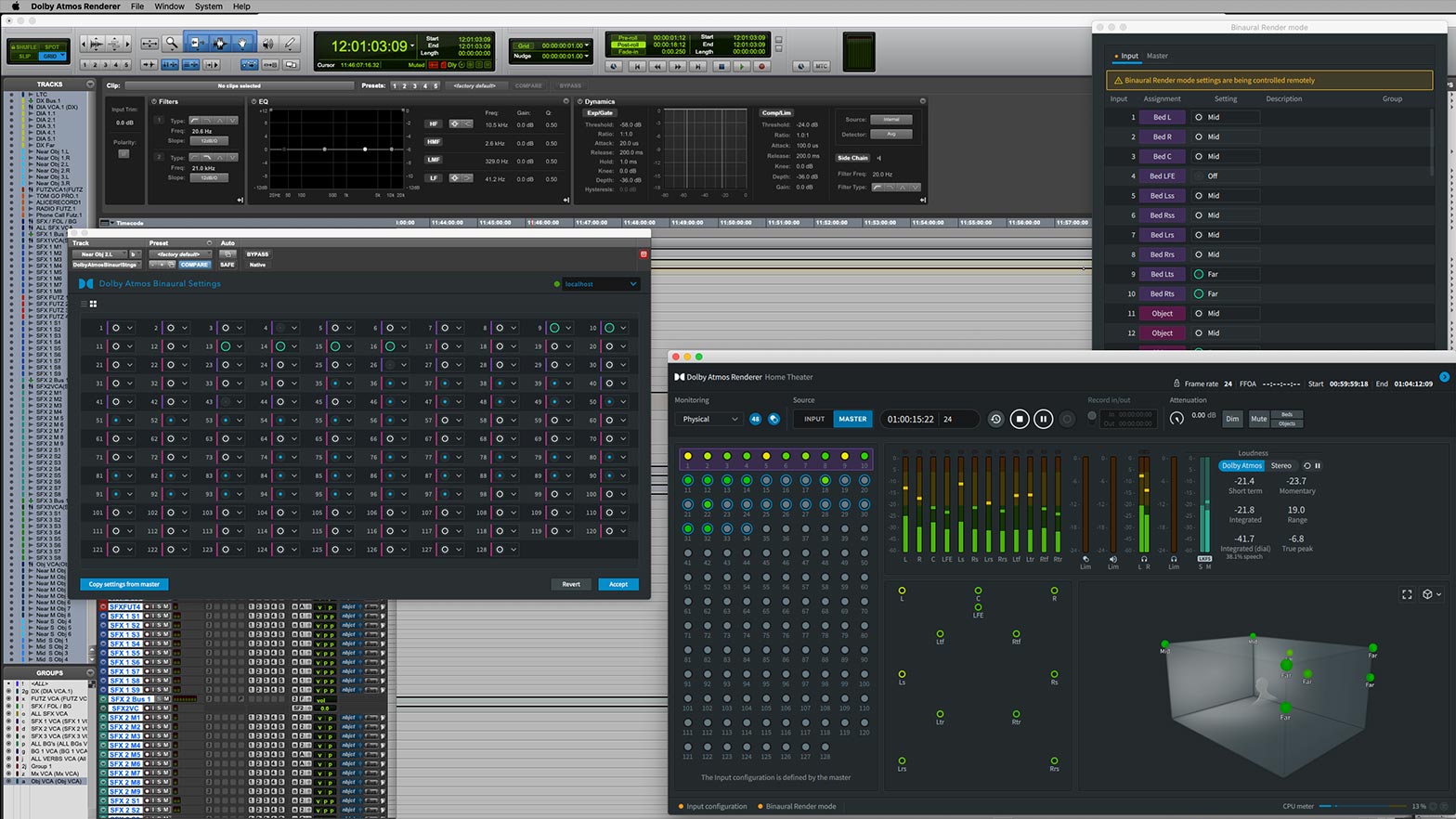

The Dolby Atmos Production Suite is a software-only solution that, in tandem with your favorite DAW, gives you a complete mixing, editing, and sound design solution for your movie, episodic TV, or music content.

Create your content anywhere

  • Allows monitoring of content on your Mac without the need for additional hardware
  • Provides editorial and premix functionality for your content
  • Playback and QC any Dolby Atmos master file type, greatly simplifying QC workflows for high-value content

Includes the Dolby Audio Bridge and Send/Return Plug-ins for passing audio between your DAW and the Dolby Atmos Renderer.



Dolby Atmos Mastering Suite

Create and deliver immersive Dolby Atmos® mixes for cinema, television, 4K Ultra HD Blu-ray™ discs, and music with the Dolby Atmos Mastering Suite. Running on qualified hardware, this software solution provides the tools you need to create in Dolby Atmos.
The Dolby Atmos Mastering Suite comprises all the software necessary to build a powerful rendering workstation running on a qualified dedicated computer. It also includes 3 copies of the Dolby Atmos Production Suite to allow premixing and edit rooms to work with Dolby Atmos content without tying up the main mix room.


Includes Dolby Atmos professional software tools:

  • The Dolby Atmos Renderer
  • Three copies of the Dolby Atmos Production Suite (Mac only)

Which Solution is Right for my Application:


Multi-system workflows for complex content productions (cinema, Blu-Ray and streaming)

Single system workflows for Music, OTT productions and others (editorial, sound design and premixes)
Workflow support
Supports multi-system workflows where dialogue, FX, and music tracks are on dedicated DAW systems
Does not support multi-system workflows
  • Dolby Atmos Renderer (Mastering suite licence)
  • 3 licenses for Dolby Atmos Production Suite
  • Dolby Atmos Renderer Remote
  • Dolby Atmos Renderer (Production suite license)
  • Dolby Audio Bridge
  • Send/Return Plug-ins
External requirements Requires external system with MADI or Dante I/O
In-the-box solution, runs on the same system as DAW
Operating system support
Windows and Mac
Mac only
Routing requirements Uses physical output via MADI or Dante
Uses software-based routing via the Dolby Audio Bridge or Send/Return Plugins
EQ and room calibration support Yes No

Speaker Array Mode support

Yes No
