Pro

Pro

Developed for the Boardroom

The most powerful product in the Rooms with Dolby Voice portfolio, Pro features a high-end dual sensor camera with 12x optical zoom that seamlessly frames conversations across larger distances, combining with the best-in-class audio performance of the Dolby phone and hub to extend the room coverage to 30 feet.

Co-developed with leading service providers, Pro re-imagines the video meeting experience in larger rooms with a unique approach that delivers natural and more productive meetings for all participants.

Image gallery

Pro is ready for your larger spaces with powerful, high-end optics and expansive audio coverage.  Install in minutes with included mounts or standard supports and placements.

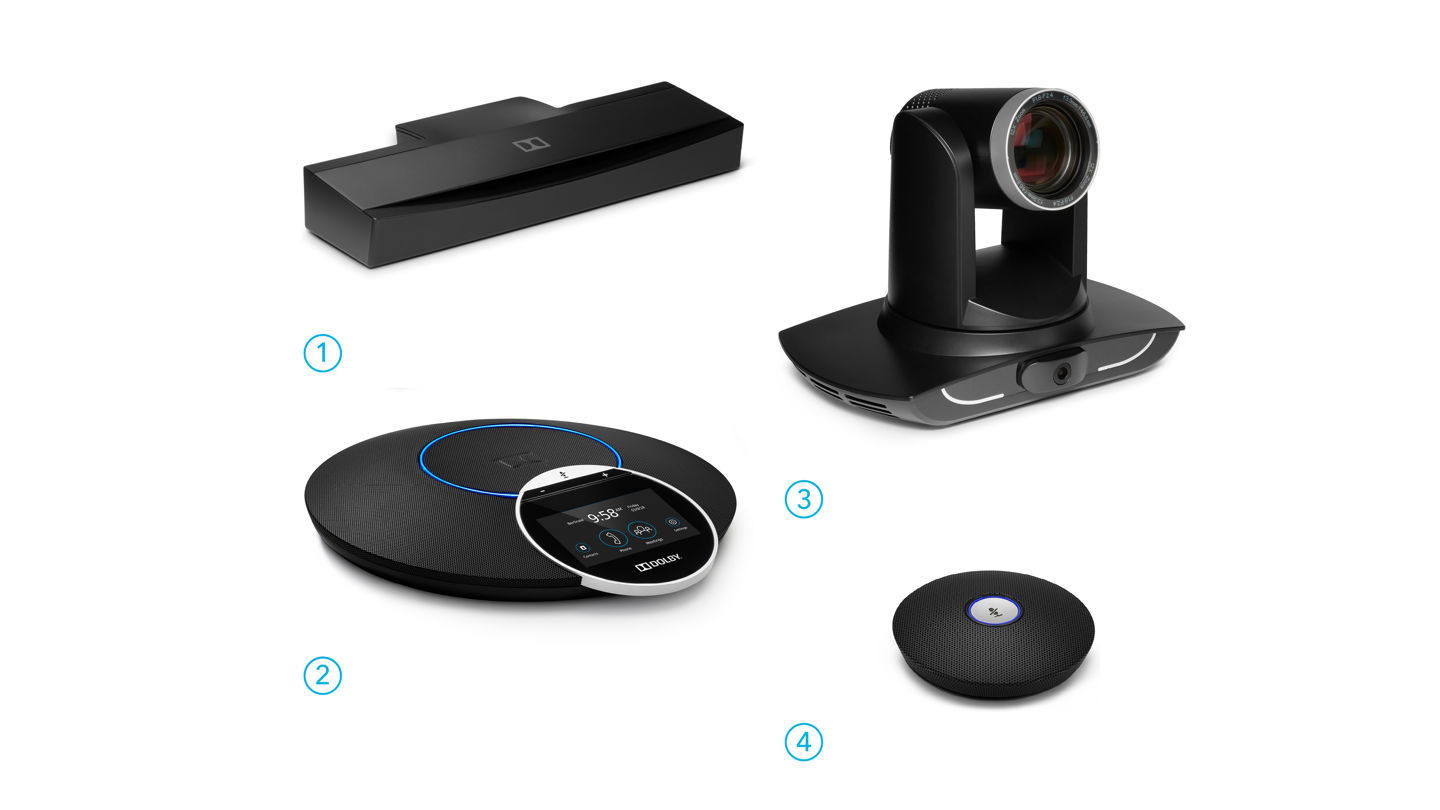

1. Hub processes all video while powering advanced imaging features
2. Phone captures and outputs audio with touch meeting controls built-in
3. Camera Pro's advanced optics keep everyone in view, with support for inverted mounting
4. Optional Satellite Mic kit extends Phone's coverage up to 30 feet

Where to Get Pro

Service Providers

BlueJeans by Verizon

LogMeIn




Equipment Providers

CDW





Specifications



Dolby Voice Camera Pro

Image sensor: 1/ 2.8 in HD CMOS Sensor, 2.07 megapixel
Maximum horizontal view angle:  72.5°
Lens: Auto/manual focus
Zoom:  12x optical zoom
Iris:  F1.8 to F2.4
Output format:  YUV422
Connectivity: 2 x USB 3.0
Pan parameters:  -170°˜ +170°
Tilt parameters:  -30° ˜+90°
WDR video mapping
Intelligent scene framing
Whiteboard mode



Video

Output resolution: 1080p
Frame rate: up to 60 fps
Codecs:  H.264 Baseline and High Profile, VP8



Dolby Conference Phone

Operating Modes:  Dolby Voice, IP phone
Service Provider Integration: IP connection and preconfigured access to Dolby Voice enabled conferencing services
Touch screen management:

  • One-touch meeting start with Bluetooth Lowe Energy (BLE) connection on supported partner apps

  • Viewable roster of meeting attendees and active speaker, add/remove participants

  • Contact directory with one-touch dialing

  • Mute/unmute, three-way conferencing, conferencing join/split/hold/resume, call waiting, call history



Audio

Features:  Full duplex, noise suppression, acoustic echo cancellation, voice placement
Codecs:  DVC-2/G.711a/G.711u/G.722/G.729ab/Opus
Audio range:  Wideband HD, 160Hz-8kHz
Microphone range: 6.1m (20ft)
Peak volume:  88 db APL T ½ meter (1.6 ft)



Dolby Voice Hub

OS:  Linux
Monitor support:  Dual (x2) display out ports
Content sharing:  Display in port-local/ broadcast and wireless sharing through partner apps
USB:  USB 3.0 host ports (x3), USB 3.0 port
Network:  10/100/1000 mbs (RJ-45) network interface



Network Provisioning

IP address configuration:  TCP/IP (IPv4), DHCP/ static IP
Web: HTTP/HTTPS web server, web proxy auto-detection and proxy auto-configuration
Support:  WebRTC
Time and date synchronization:  SNTP
VLAN support:  Dolby Voice and IP telephone calls on separate voice and data VLANs
QoS support:  IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS and DSCP
