Engineered for larger conference room and boardroom environments, the Dolby Voice Room Pro helps keep people focused on what matters most — communicating, collaborating, and connecting.
Advantages of Dolby Voice Room Pro
Intelligent video and audio
Dual cameras continuously scan the room, and intelligent scene framing automatically selects the perfect view. Wide dynamic range (WDR) video corrects for challenging lighting conditions to enhance and clarify facial features. Full-room audio pickup with dynamic leveling boosts quiet or distant voices — and even overlapping speech — for clear, natural conversation.
Dolby Voice Camera Pro
- Dimensions (W x H x D): 254 mm x 182 mm x 148 mm
Simple form and function
Streamlined design frees up work surfaces and minimizes distractions. Userfriendly features and controls mean participants spend less time getting started and more time getting things done. Simple deployment, operation, and management helps keep IT focused on critical tasks.
More human connections
Flexible features engineered for larger conference and meeting spaces. Intelligent video and audio create an authentic, effortless experience. A distraction-free meeting environment helps keep participants focused and engaged.
Start the conversation with Dolby
Get the Dolby Voice Room Pro experience
Dolby Voice Room Pro combines intelligent video and audio to produce a clear, natural, distraction-free meeting experience. See how advanced technology can create an ideal environment for human connections.
The big picture
Dolby Voice Room Pro features a unique dual camera system. The panoramic camera continuously monitors the room, while Dolby’s intelligent scene framing technology identifies the perfect view. At the same time, the tracking camera — powered by Dolby’s proprietary algorithm for detecting people in a space — relies on 12x optical zoom and 170 degree rotation to keep everyone in view.
Everyone present
Using Dolby’s purpose built algorithm, Dolby Voice Room Pro detects each unique voice in the room and processes it relative to the others. Plus, the advanced 2D/3D noise reduction technology minimizes camera noise and movement. The result is a smoother, more cohesive, and more immersive meeting experience — free from erratic movement and distracting noise.
Hear and be heard
Dolby’s full-room pickup and dynamic leveling technology identify and boost quiet or distant voices so that everyone is heard. Dolby Voice Room Pro also improves poor acoustics by isolating human speech and eliminating echoes.
Every voice in place
Dolby Voice Room Pro uses advanced voice placement technology to give the sense that each person in a room is speaking from a distinct location — the way it sounds in person.
A clear point of view
Wide Dynamic Range (WDR) video mapping captures participants’ facial features in rooms with challenging lighting conditions, so you see everyone in the best possible light.
Proper perspectives
Dolby Voice Room Pro whiteboard framing corrects for perspective in larger conference rooms, meaning remote participants can see an entire whiteboard without distortion. The optical zoom camera can accurately capture an entire room, including details at the far end of a space.
Start the conversation with Dolby
Get the Dolby Voice Room Pro experience
Dolby Voice Room Pro specifications
Specifications
Dolby Voice Camera Pro
- Dimensions (W x H x D): 254 mm x 182 mm x 148 mm
Tracking camera
- Image sensor: 1/ 2.8 inch HD CMOS Sensor, 2.07 megapixel
- Resolution: Up to 1080P (1920 x 1080)
- Frame rate: Up to 60 frames per second
- Maximum horizontal view angle: 72.5°
- Lens: Auto/manual focus
- Zoom: 12x optical zoom
- Iris: F1.8 to F2.4
- Output format: YUV422
Panoramic sensor
- Image sensor: 1/ 3 inch HD CMOS Sensor, 2.1 megapixel
- Lens: Fixed focus
- View angle (D/H/V): 122°/98°/73°
- Connectivity: 2 x USB 3.0
- Pan parameters: –170° ~ +170°
- Tilt parameters: –30° ~ +90°
- Wide dynamic range
- Intelligent scene framing
- Whiteboard mode
Video
- Codecs supported: H.264 Baseline and High Profile, VP8
Dolby Conference Phone
- Dimensions (W x H x D): 30 cm x 5.6 cm x 32 cm
- Operating Modes: Dolby Voice, IP phone
- Service provider integration: IP connection and pre-configured access to conferencing services enabled with Dolby Voice
- One-touch meeting start with Bluetooth Low Energy (BLE) connection on supported partner apps
- Viewable roster of meeting attendees and active speaker, add/remove participants
- Contact directory with one-touch dialing
- Mute/unmute, three-way conferencing, conferencing join/split/hold/resume, call waiting, call history Broad interoperability. For details, visit dolby.com/interop
- Communication protocols: IETF SIP (RFC 3261 and companion RFCs)
- Audio features: full duplex, noise suppression, acoustic echo cancellation, voice placement
- Audio codecs: DVC-2/G.711a/G.711u/G.722/G.729ab/
- Audio range: Wideband HD, 160 Hz—8 kHz
- Microphone range: 6.1 m (20 ft)
- Peak volume: 88 dB SPL at 1/2 meter (1.6 ft)
Dolby Voice Hub
- Dimensions (H x W x D): 31.6 cm x 4 cm x 11 cm
- OS: Linux
- Monitor support: Dual (x2) display out ports
- Content sharing: Display in port—local/broadcast and wireless sharing through partner apps
- USB: USB 3.0 host ports (x3), USB 3.0 device port
- Network: 10/100 Mb (RJ-45) network interface, 10/100 Mb (RJ-45) POE 802.3af network interface
- Additional: power port, security lock
Network provisioning
- IP address configuration: TCP/IP (IPv4), DHCP/ static IP
- Web: HTTP/HTTPS web server, web proxy auto-detection and proxy auto-configuration Support, WebRTC
- Time and date synchronization: SNTP
- VLAN support: Dolby Voice and IP telephony calls on separate voice and data VLANs
- QoS support: IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS and DSCP
- RTCP support: (RFC 1889)
- LDAP directory support
- Plug-and-play provisioning enabled by Dolby Voice Console cloud provisioning service
Security
- Encryption: TLS (Transport Layer Security) for SIP, SRTP encryption for media, 128 bits AES
- Network Access Control: IEEE 802.1x
- SHA-2 Certificate
Development
- Hub: Chromium Web App SDK
- Phone: Conferencing Service Application SDK
Operating requirements and specifications
- Hub external power adapter: 90–240v AC input
- Camera power supply adapter: Input AC110V–AC220V to DC12V/2.5A
- External power adapter: 90–240v AC input
- Power consumption: Idle <2.8W, normal operating—24w; max—30w
- Operating humidity: 20–85% (non-condensing)
- Operating temperature: 0°–40° C (32°–104° F)
- Storage temperature: -30–50° C (-22°–122° F
Start the conversation with Dolby
Get the Dolby Voice Room Pro experience

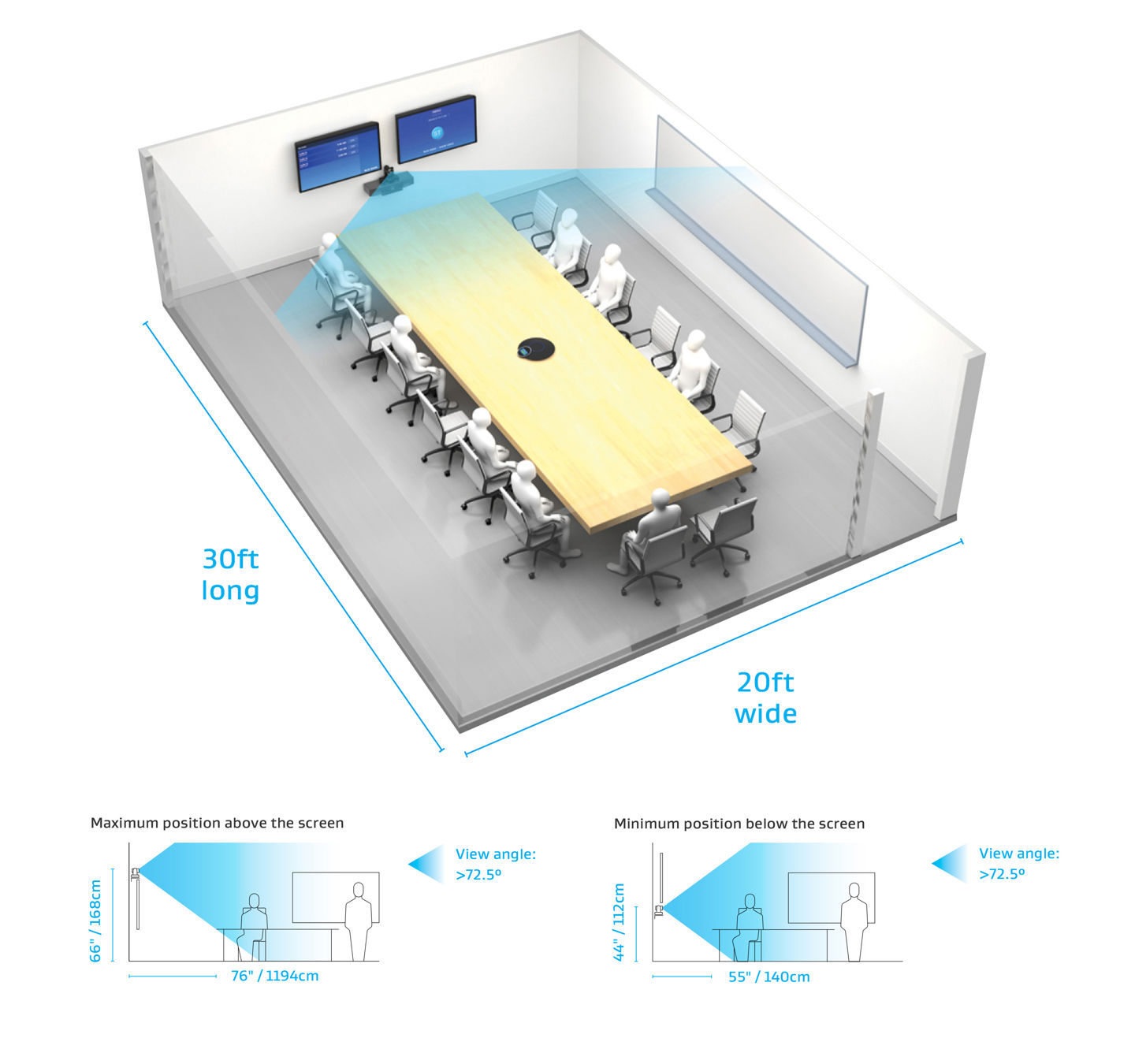

Dolby Voice Room Pro is designed for easy setup. The recommended placement for the Dolby Conference Phone is in the center of the table. The new Dolby Voice Camera Pro can be placed either above or below the screen.
